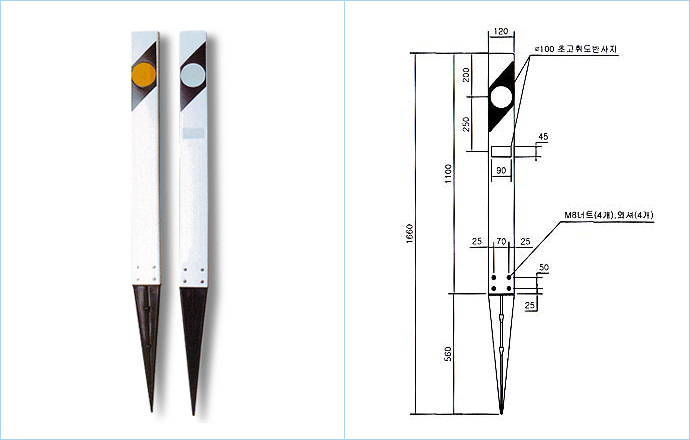

Side Post size

Division	SM737 Double Faced
SIZE	120 x 40 x 1650(mm) / underground fill up part - 560(mm), exposure part - 1100(mm)
REFLECTOR : Front	Ø100 white diamond grade reflective sheet 45*90 square diamond grade reflective sheet Rear Ø100 amber diamond grade reflective sheet
REFLECTOR HEIGHT	from the earth to reflector center 900mm

Side Post size

Division	SM737 Single Faced
SIZE	120 x 40 x 1650(mm) / Reclaim - 560(mm), Exposure - 1100(mm)
REFLECTOR : Front	Ø100 white diamond grade reflective sheet 45*90 square diamond grade reflective sheet
REFLECTOR HEIGHT	from the earth to reflector center 900mm

• With two diamond grade reflective sheet, the reflective ability is very prominent.
• 2 lined diamind grade reflective sheet on the post will be satisfied with all kind vehicle drivers since 2 lined reflective sheet will reflect at drivers eye level.
• The maintenance is easy because you may simply change the reflective sheet only when it tore off partly.
