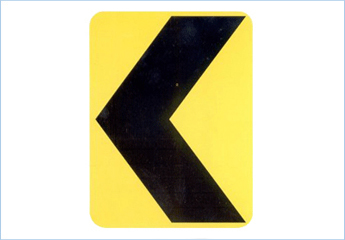

Chevron Alignment Sign size

Division	Size
MATERIAL	Aluminum Plate (2mm)
Reflective Sheet	Amber Surface - High Brightness R/S Black Signal - Non R/S
POST	Ø48, Ø60

road safety product installation & management guide - gaze induction facility - Ministry of Construction and Transportation guide

• Function

  Install this product to the very plane curve part and the place which is visible with the eye is defective so clearly the fan shape and bends of road in day and night and keep the safety driving

• Features
  • Chevron alignment sign composes chevron sign letter, sign board and post.
  • The form of chevron alignment sign is as follow.
    1. The standard board size for 45*60 (cm)
    2. The angle of chevron sign letter is only one.
    3. The place which is not good for the standard size installation by back the infrastructure such as median barrier, bridge, can use it by the abridges the standard size.
    4. The chevron sign which is using in construction area can control the size according to the safety facility planning with road and traffic situation.
    5. Install the sign by double type on the two way road and single type on over four way road with median barrier.
  • The post cam fix the sign board certainly to the needed location.
