- Drawing1
- Drawing2
- Fixing part (Èë¼Ó¸Å¸³ / ÄÜÅ©¸®Æ®±âÃÊ)
Division | Size |
---|---|

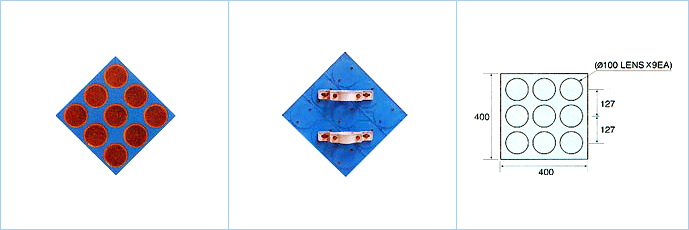

SIZE | 400 x 400mm (100Ø reflector ×9ea) |
USE | infront of turnnel, underground driveway, median barrier, interchange and pier |
- Assembled 9pcs of ¥Õ100mm reflex delineators provide drivers with radiant reflex lights.

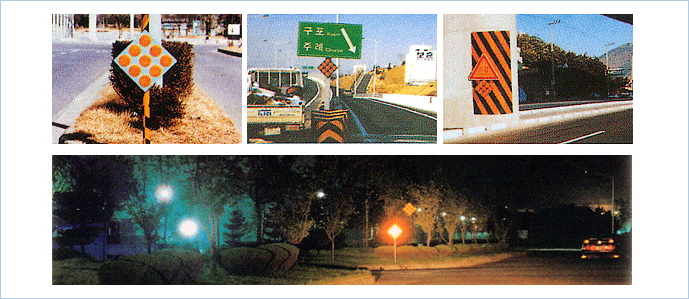

- If installed SM501 delineators are in the places where the accident potentially occur often, such as at entrances of tunnels, entrances of underpasses, entrances of bridges, 3-way junctioning separators, median strips and in front of the piers, prevents serious traffic accidents.
